제품 세부 정보
원래 장소: 중국
브랜드 이름: AVITT TAICHANG OR OTHERS
인증: CE, ISO
모델 번호: 12m 배치 붐
문서: 제품 설명서 PDF
지불 및 배송 조건
최소 주문 수량: 3
가격: $3600-5900 per set
포장 세부 사항: 적나라한 패킹, 12m 두는 붐을 위한 1*20'GP 또는 1*40'HC 콘테이너
배달 시간: 보증금 수령 후 10일
지불 조건: TT, LC
공급 능력: 한 달에 4000 세트
상태: |
100% 새로운 |
애플리케이션: |
건물 및 프로젝트 |
유형: |
스파이더 모바일 |
작업붐: |
11.2m |
회전 범위: |
360 |
전기 요소: |
CHNT 또는 SCHNEIDER |
전원 공급 장치: |
380V/50Hz 또는 고객의 요구 사항에 따라 |
색상: |
노란색 또는 고객의 요구에 따라 |
제어 시스템: |
정상적인 것 |
상태: |
100% 새로운 |
애플리케이션: |
건물 및 프로젝트 |
유형: |
스파이더 모바일 |
작업붐: |
11.2m |
회전 범위: |
360 |
전기 요소: |
CHNT 또는 SCHNEIDER |
전원 공급 장치: |
380V/50Hz 또는 고객의 요구 사항에 따라 |
색상: |
노란색 또는 고객의 요구에 따라 |
제어 시스템: |
정상적인 것 |

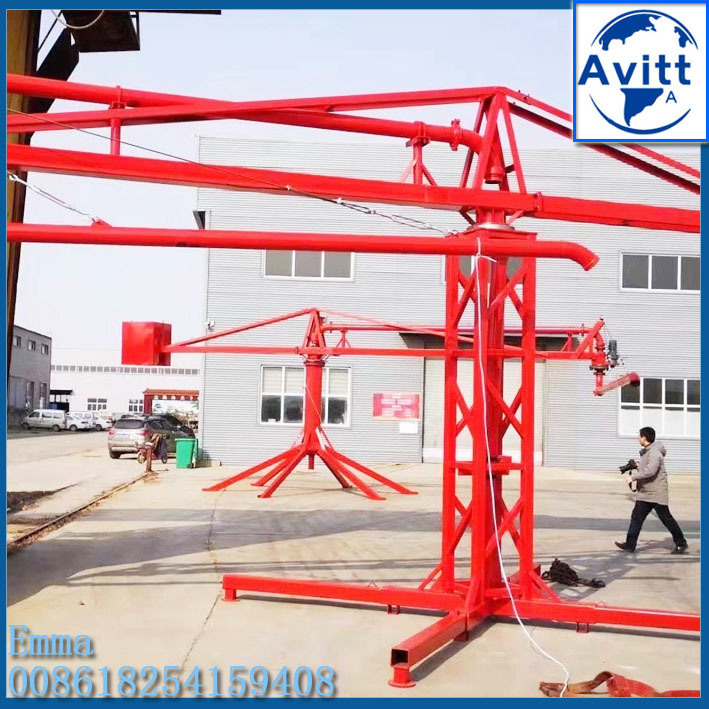

Double Electric Slewing 12m Concrete Placing Boom Cable and Remote Control
Performance parameters
Мах. boom length - 11. m;
Concrete pipe line (steel, DN125 mm)
Support - outrigger (4 legs);
Remote control - wired remote control.
Specification
| Model | 12m electric type | ||
| Performance | Horizontal reach(m) | 11.2 | |
| Rotation(°) | 360° | ||
| Slewing brake | Normally closed | ||
| Working environment temperature | -20℃～40℃ | ||
| Weight(T) | Without counterweight | 1.2 | |
| With Counterweight | 1.8 | ||
| Control System | Power Supply | 380V/50HZ, 3Phase | |
| Power(kW) | 750w*2 | ||
| Control mode | remote | ||
| Boom | Duct cleaning method |
Wash/Dry cleaning |
|
| Boom open way | Two | ||
| Inner diameter of delivery pipe(mm) | Φ125 | ||
| End rubber hose(m) | 2 | ||
The concrete placing boom consists of arm assembly, a rotating device, upper and lower supports, a chassis, concrete pipelines, and an electrical control system.
The boom is a 2 section box structure, which is extended and folded by.
When combined with a rotating mechanism, it can transport concrete to the required construction surface.
The electrical control system can achieve wired and remote operation.
Service
a. Rapid response to any inquiry(within 3 hours) and 24 hours on-line service.
b. Competitive price which directly work with facotry. Welcome to visit us.
c. Professional inspection department to guarantee quality.
d. Engineers will go to construction site for guiding the installation and test-running for first time.
e. Easy-worn Spare parts is free supplied along with the tower crane.
f. 12 months super long time guarantee period.
Our Service
------Quality Assurance
Good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
------Excellent Package
We provide standard, strong, protective package for our products to prevent it from outer damage.
------Warranty Assurance
For our tower crane, we provide 1 year warranty period and quick replace service.
------The Fastest Reply
Detailed information,specific model and price of products will be provided quickly after receiving inquiry.
Other types tower cranes, topless and luffing type are also available, besides, we accept OEM according to clients needs.
